Floorplan - 2009 Jayco Legacy 36RLMS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

-
Sleeps 4
-
3 Slides
-
Rear Living AreaFront Bedroom
-
38ft Long
-
14,490 lbs
-
Cabernet, Espresso & Truffle

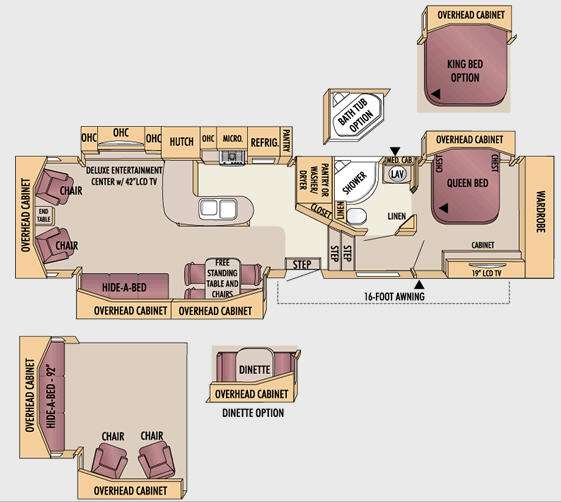

36RLMS Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 38 ft 4 in | Ext Width | 8 ft 4 in |
Ext Height | 13 ft 5 in | Int Height | 6 ft 7 in |
Interior Color | Cabernet, Espresso & Truffle | Hitch Weight | 2170 lbs |
Gross Weight | 17500 lbs | Dry Weight | 14490 lbs |
Cargo Weight | 1510 lbs | Fresh Water Capacity | 112 gals |
Grey Water Capacity | 80 gals | Black Water Capacity | 58 gals |
Tire Size | 16" | VIN | 1UJCJ02U899XE0037 |
Description
Triple Slide Jayco Legacy Fifth Wheel, Rear Two Lounge Chairs w/End Table, Hide-A-Bed Sofa & Free Standing Table w/Chairs Slide Out, Deluxe Ent. Cntr. w/42" LCD TV/Hutch/3 Burner Range/Micro./Refrig./Pantry Wall Slide, L-Shaped Counter w/Dbl. Kitchen Sink, Pantry or Washer/Dryer, Closet, Corner Shower, Linen, Toilet, Lav. w/Med. Cab., or Opt. Tub, Front Queen Bed Slide Out or Opt. King Bed, Cabinet, 19" LCD TV, Wall Ward. & More. Opt. Rear Lounge Chair Slide Out or Booth Dinette Opt.
Features
Standard Bathroom Equipment
- Window in commode area
- Wall switches for all lights
- Towel holder
- Toilet paper holder
- Thetford® porcelain stool with foot pedal
- Solid hardwood spindle corner accents on lavatory base
- Skylight with shade in tub/shower
- Residential medicine cabinet w/ mirror
- Radius glass shower door
- Nickel fixtures
- Fiberglass radius shower
- Ducted heating
Standard Bedroom Equipment
-
TV cabinet and overhead cabinet with storage. with satellite and cable jacks
-
Reading lights over bed
-
Quilted bedspread with 2 pillow shams
-
Queen bed
-
Nightstands (w/ Queen bed only)
-
Dresser with built-in laundry hamper
-
Dresser drawers, residential style
-
Decorative pillows for bed
-
Decorative mirrored headboard
-
Bed lifts easily on struts, with storage below
Standard Construction Features
-
Frame prepped for bike rack/cargo tray option
-
Welded aluminum floor, wall and roof studs on 16" centers
-
Reflective foil insulation and residential insulation in sidewalls, front and rear (R-17)
-
Polar Barrier™ Thermal Package
-
One piece, seamless, rubber roof
-
Metal underbelly covering
-
Gel-coat fiberglass sidewall exteriors
-
Fully decked roof with 3/8" plywood
-
Frame made of 10" double-stacked, tubular cambered steel
-
Enclosed, insulated and heated underbelly (R-41)
-
Electric-powered slideout
-
Deluxe hidden cabinet hinges
-
Cabinetry crafted with screwed hardwood stile construction
-
1/2" bead-foam insulation in sidewalls
-
5/8" tongue and groove plywood main floor decking
-
4-1/2" arched aluminum truss roof (R-29)
-
100" wide body
-
1-1/2" welded tubular-aluminum sidewall framework
-
5-1/2" floor trusses
Standard Exterior Equipment
-
Triple retractable entrance step
-
Street-side utility light
-
Stor-Galore™ basement storage
-
Sidewall corners radiused at top and bottom
-
Shock absorbers on all wheels
-
Rain guttering, molded w/ drip spouts
-
Patio light w/ inside switch
-
Partial paint exterior graphics
-
Outside shower
-
Nev-R-Lube™ axles
-
Lighted heavy duty grab handle
-
LED exterior running lights
-
Roof ladder
-
Gel-coat entry and baggage doors
-
Painted steel wheel wells
-
Front jacks w/quick release pins
-
E-Z Lube® shackles
-
Entrance door is fiberglass and radius cornered w/screen door
-
Electric-powered front jacks
-
Caps on front and rear made of fiberglass w/radius corners
-
Foldable exterior grab handle
-
Battery box for two batteries
-
Basement storage w/ Tuff-ply™ flooring
-
Baggage doors, lockable, insulated and radius-cornered w/heavy-duty grab handles
-
ABS fender skirts
-
8-Lug polished aluminum wheels
-
8000-lb disc brake system w/ electric over hydraulic actuator
-
16" G range radial tires
-
12V storage compartment lights
-
12V hitch light
-
Adjustable shackles
-
Standard Heat, Power and Water Equipment
-
Water system winterization kit
-
Water heater bypass system
-
Uni-Dock™ utility center, heated and enclosed
-
Prep for washer/dryer
-
Prep for solar panel
-
Prep for second A/C
-
Monitor panel for all systems
-
Interior Command Center®
-
In-floor ducted heat
-
Hook-up for city water
-
Holding and fresh water tanks made with rotocast design
-
Furnace with wall thermostat, auto-ignition
-
Dual 40-lb. propane gas bottles, w/ regulator (in side compartment)
-
Battery disconnect switch
-
A/C chill grill
-
A/C (Central), 15,000 BTU with quick cool feature, louvered directional ceiling vents
-
50-amp quick-connect power cord
-
50-amp electric service
-
12V electrical system with 110V, 80-amp power converter
-
12V demand water pump
-
12-gal. gas/electric DSI auto-ignition water heater
-
110V G.F.C.I. protected exterior receptacle
Standard Interior Equipment
-
Work station/desk
-
Wardrobe lights
-
SuperSlide™ w/ flush-floor design
-
Rocker recliner(s)
-
Residential-style trim and molding
-
Residential tack-strip carpet installation
-
Prep for satellite dish for roof and sidewall
-
Padded vinyl ceiling throughout
-
Overhead cabinetry in slideout room with raised panel doors
- Linoleum floor in entryway
-
Inlayed hardwood entrance door header
-
High-intensity 12V lighting package
-
Hide-a-bed sofa (air mattress)
-
Hardwood cabinet stiles
- Halogen lighting under overhead cabinets
-
Genuine DuPont® Stainmaster™ carpeting in the living room and bedroom
-
End table with built-in magazine rack
-
Deluxe entertainment center
-
Decorative throw pillows for hide-a-bed
-
Decorative nickel lighting throughout
-
Hardwood entrance door header
-
Crank-up digital TV antenna with signal booster
-
Ceiling fan w/light
-
Carpeting w/plush 3/8" residential rebond carpet padding
-
Cable TV hookup w/RG6 coax cabling
-
Ball bearing drawer guides throughout
-
Hardwood entrance door grab handle
-
Pleated day/night shades
Standard Kitchen Equipment
-
Wallpaper border
-
Trash can
-
Toe kicks on all base kitchen cabinets
-
Stainless steel convection microwave oven
-
Silverware drawer, divided for utensils
-
Recessed sealed 3-burner range w/ 9000-BTU burners
-
Mini-blind
-
High-rise single lever faucet w/pull-out sprayer
-
Hardwood spindle corner accents on kitchen bases
-
Fee-standing table with 4 chairs
-
Dupont Corian® sink covers (2)
-
Dupont Corian® bi-fold, recessed cover for stove
-
10 cu.ft. refrigerator w/stainless steel double doors
-
Stainless steel sink
Standard Safety Equipment
-
Tinted safety glass windows
-
Smoke alarm
-
Propane alarm
-
Multiple egress windows
-
Lock and dead bolt on entrance door
-
Fire extinguisher
-
Carbon monoxide alarm
-
Breakaway switch
Customer Value Package
-
Dolby® Digital 5.1 Surround Sound system
-
DuPont™ Corian® kitchen and bath countertops
-
Central vacuum system
-
Electric rear stabilizer jacks (2)
-
Decorative hardwood facia boards
-
Carefree® Eclipse™ armored side awning with wind sensor
-
Aluminum rims
-
Floor safe
-
19" LCD HDTV in bedroom
-
Holding tank sprayer
-
42" LCD HDTV In living area
-
MOR/ryde® suspension and pin box
-
Deluxe pillowtop mattress
-
Security lights (2)
-
Spare tire & carrier
-
Water purification system
Select Package
-
Deluxe free-standing table with hidden storage and extended leaf
-
Frameless thermo-pane windows
-
Hardwood bedroom door w/opaque glass inserts
-
Hardwood interior window trim
-
All-in-one home theater remote
-
Decorative light above entry door
-
Hardwood step trim
-
High gloss polished DuPont™ Corian® countertops with bullnose style edging
-
JVC® home stereo system w/stackable tuner, DVD and 5.1 Dolby® Digital
-
Jabot curtains throughout
-
Raised panel hardwood interior passage doors (bedroom & bath)
- V-groove DuPont™ Corian® backsplash at range
Options
-
Burnished Glazed Maple hardwood cabinetry
-
Washington Glazed Maple hardwood cabinetry
-
Fireplace
-
Leather recliners (2) ILO fabric recliners
-
Norcold® side-by-side refrigerator w/ ice maker
-
Stackable Whirlpool® washer & dryer
-
Fantastic Fan™ w/ rain sensor(kitchen)
-
22" oven
-
Satellite kit: Tripod; dish; coax cable; electronic satellite finder; installation video
-
Kingdome® satellite dish
-
2nd 15,000 BTU A/C
-
15,000 BTU A/C w/ heat pump in living area
-
Generator prep
-
7000 watt generator
-
2800 watt inverter w/ 4 batteries
-
Armored slideout awnings (3)
-
Basement slideout storage tray (door side)
-
Audible backup camera system
-
Bike rack/cargo tray system
Customer Value Package
-
Aluminum rims; Dolby Digital 5.1 surround sound system; Central vacuum system; Dupont Corian® kitchen and bath countertops; Decorative hardwood fascia boards; Carefree® Eclipse™ armored side awning with wind sensor; Electric rear stabilizer jacks (2); Floor safe; Holding tank sprayer; 19" LCD HDTV in bedroom; 42" LCD HDTV In living area; MOR/ryde® suspension and pin box; Deluxe pillowtop mattress; Security lights (2); Spare tire & carrier; Water purification system
Select Package
-
Frameless Thermo-Pane Windows; Maple Raised Panel Hardwood Interior Passage Doors; Jabot Curtains Throughout; Decorative Hardwood Bedroom Door w/Opaque Glass Insert; Maple Hardwood Interior Window Trim; Interior Decorative Light Above Entry; Maple Hardwood Interior Step Trim; Deluxe Free Standing Table w/Extendable Leaf & Hidden Storage; Polished High-Gloss Dupont Corian® Kitchen & Bath Countertops; Bull-Nose Style Countertop Edging; Polished High-Gloss DuPont Corian® Kitchen Backsplash; All-In-One Home Theater Remote; Residential Style JVC® Stackable Home Theater System
